Large format projection, cutting-edge sound and lighting for the annual alumni event for IESE Madrid

As specialists in the integration of audiovisual services for large events, Sono was tasked with supplying the audiovisual equipment and the technical assistance for the staging of this event run by Emotion Technologies. It was a ten-hour, full-day held in the Palacio de Congresos Municipal in Madrid, with 2,000 former students of the organisation.

Edge Blending for large format projection

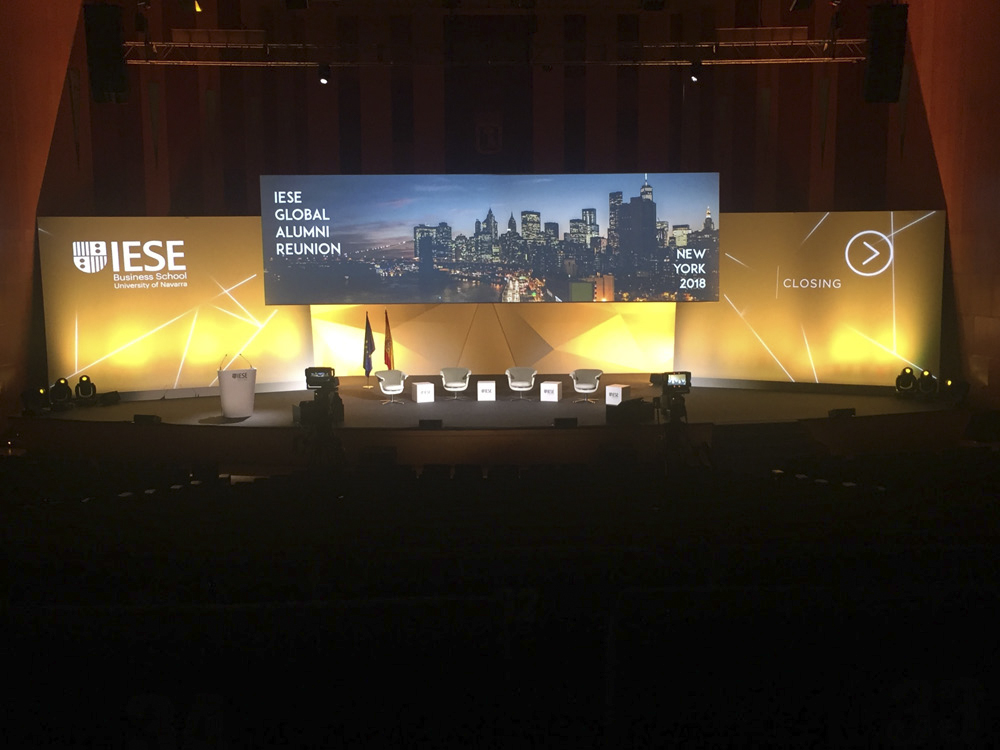

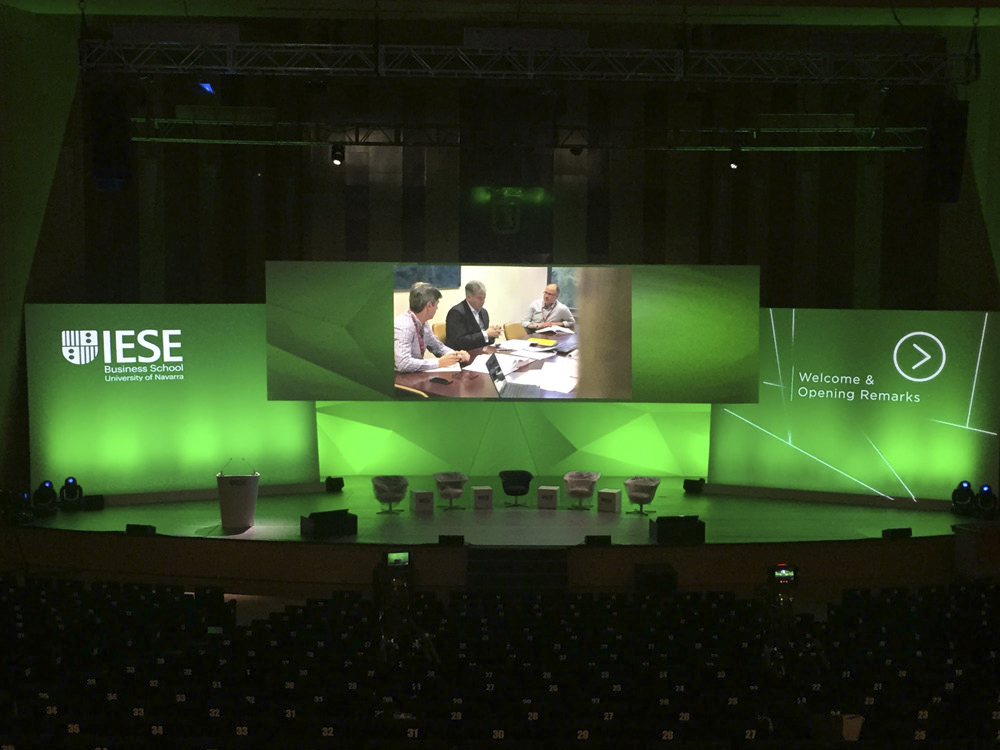

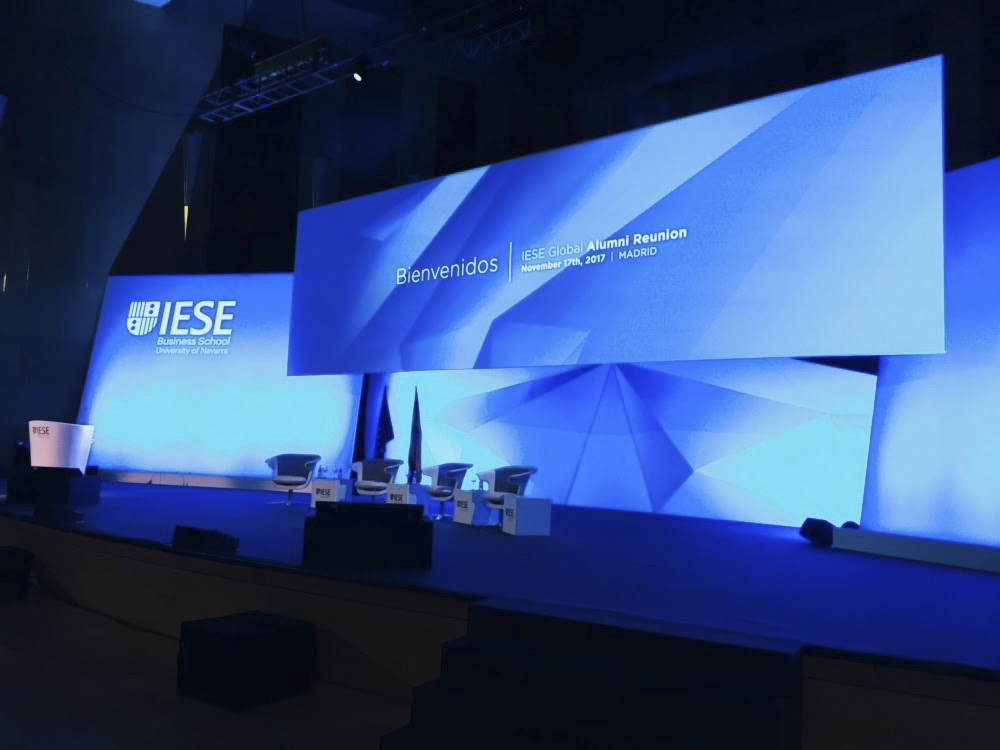

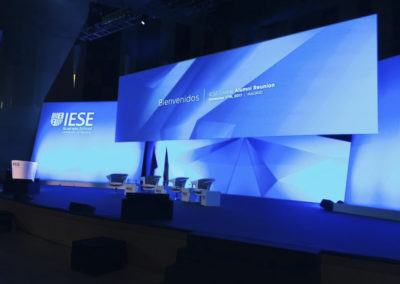

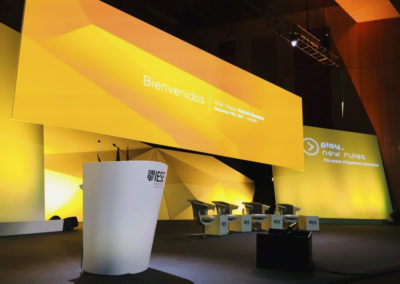

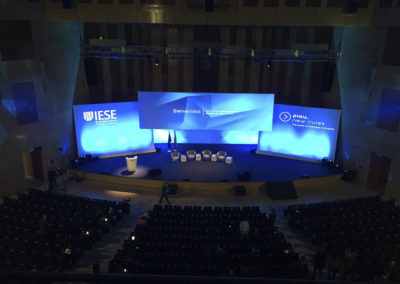

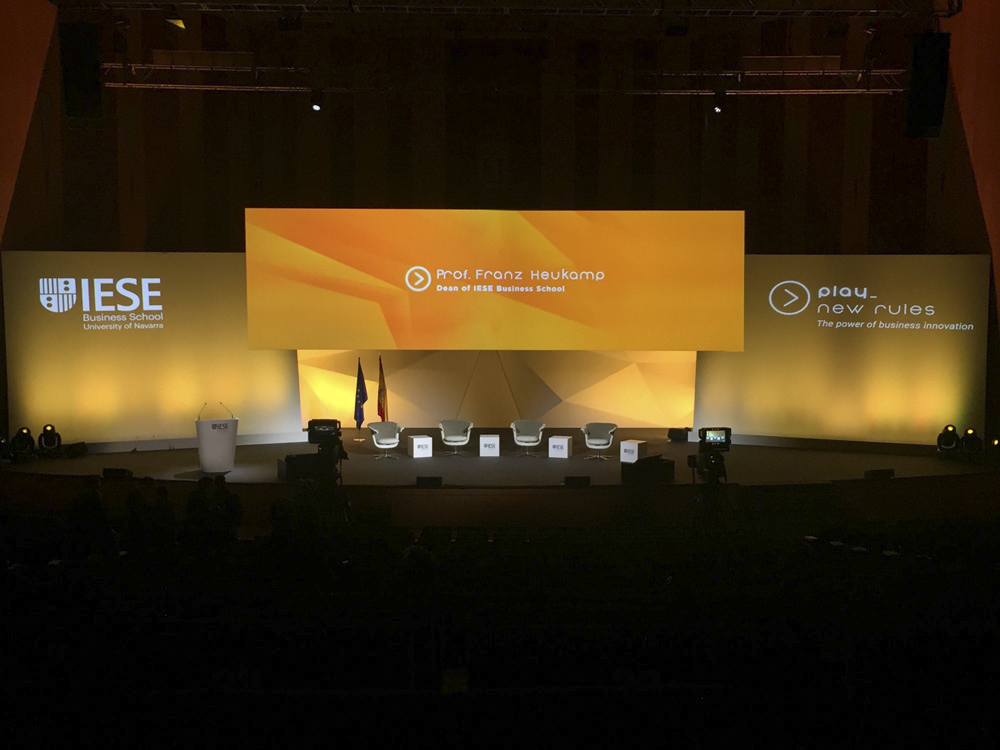

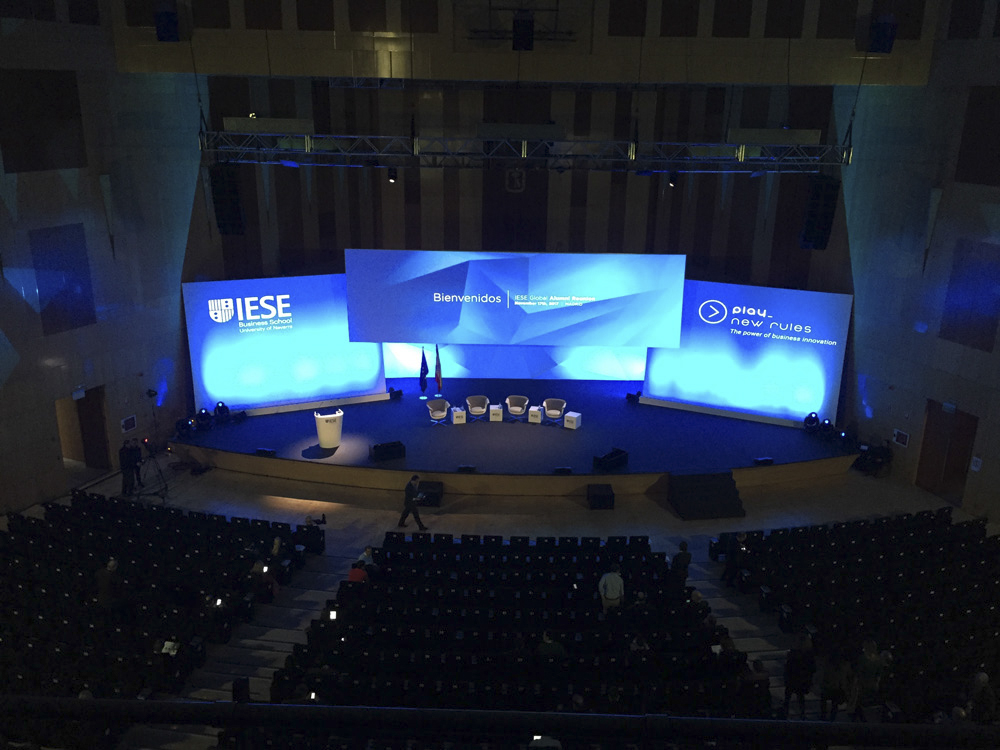

The stage set was formed of three large-format projection screens. There were two at the sides measuring 4.8 x 7 metres, which were tilted, and a central one covering 43.4 square metres. The projection system was made up of four 20,000 lumen Barco HDX FLEX projectors, two of which were calibrated for edge blending to create a combined image on the central screen.

Edge Blending technology allows for the perfect calibration of two projectors, so that an image is achieved with a better quality, higher luminosity and higher definition.

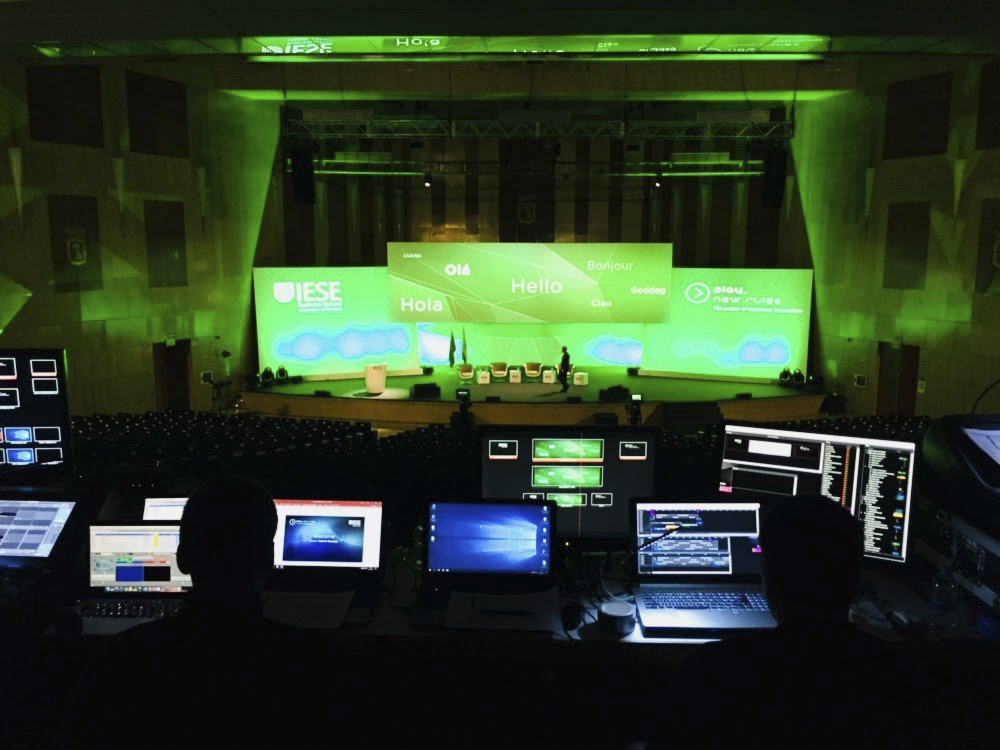

Content management was carried out using with the multi-image Watchout visualisation and presentation software and the Barco E2 control system.

Production, sound and language interpreting

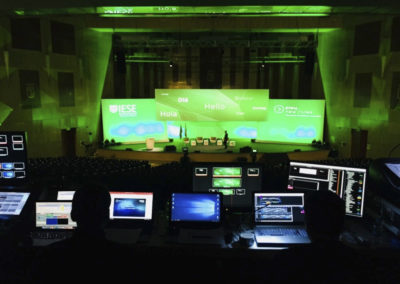

Sono was also tasked with producing the live event using three HD cameras. Two were fixed and the other was made mobile by means of a camera dolly platform in order to give better coverage of movement in the room. For the sound engineering of the auditorium two line arrays of Kara (8+8) loudspeakers were used with a Kiva front fill speaker reinforcement system for the first rows of the audience, plus l’Acoustic 108 stage displays.

Event speakers used Shure ULX wireless microphones, of which ten were DPA headset microphones and four were hand-held.

The event required simultaneous language interpreting, for which Sono also provided the equipment and technical assistance necessary.

Synchronised lighting

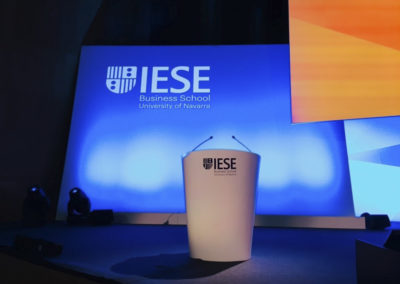

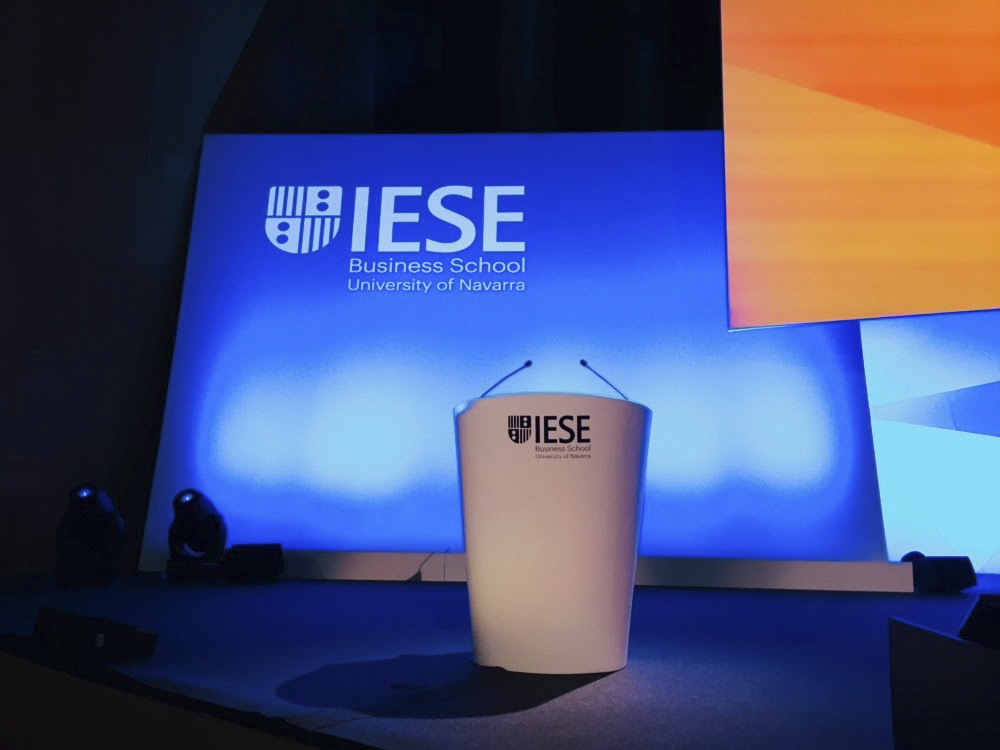

Las características de la sala y la conOwing to the nature of the room and the configuration of the stage set it was necessary to create two different sets of lighting for the lectern and the seating area. Furthermore, side lighting and decorative side and back-wall lighting was also required.

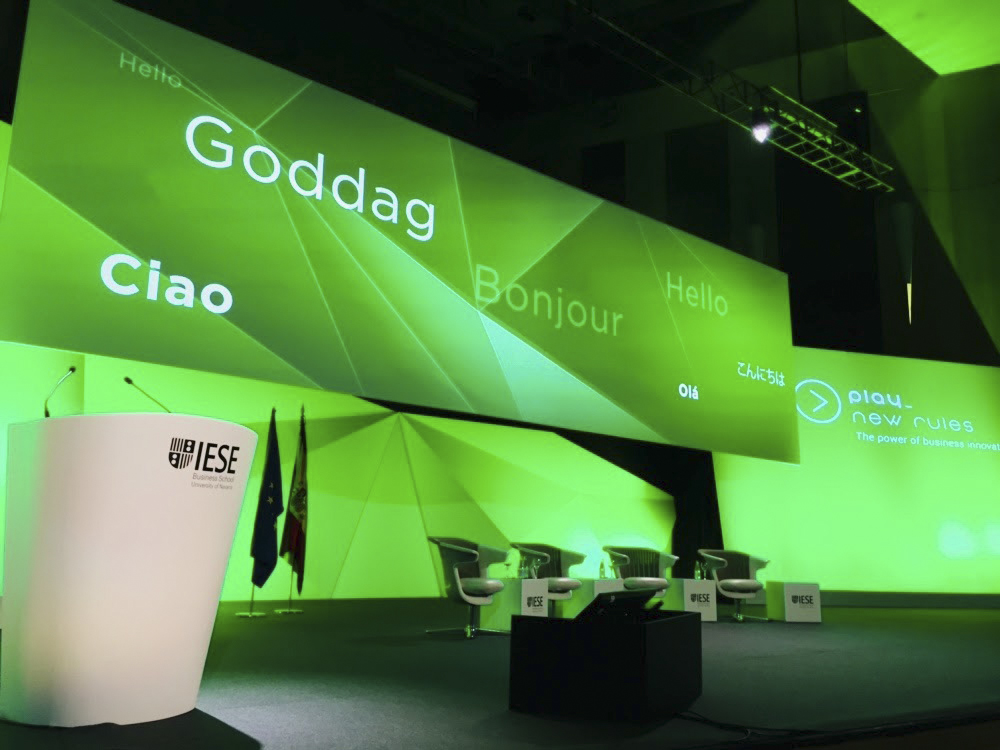

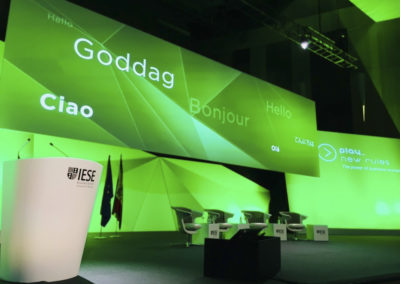

One of the technical challenges of the event was to manage and synchronise the lighting of the back wall of the stage with the gradual appearance of the content on the central screen. More than 30 lighting projectors were synchronised by means of a Watchout system. For background lighting different colours were used together with the projected gobos.

Audiovisual systems and technology employed:

Video:

Barco HDM W20 FLEX projectors

Watchout content management

Barco E2 control system

Production:

Cameras Panasonic P2 HD

Grass Valley Racks

Sound:

L’Acoustic sound system: P.A. Kara, Frontfill Kiva, L’Acoustic 108 displays

Shure ULX microphones

Digico sound desk

Simultaneous language interpreting:

Bosch digital receivers for simultaneous interpreting
